Excel Software Defined Radio (Model 2)

M.No: SYS 19 025 00 000A

Overview

Excel SDR is the miniaturised 2x2 Software Defined Radio (SDR) comes with RF Transceiver and the Xilinx Programmable SoC with interfaces like Ethernet, USB-UART, GPIO and SD Card. You can build your own wireless communication product using EXCEL SDR from RF-to-baseband processing.

Application

- P2P Communication System
- Small cell base stations
- General purpose radio systems
- Unmanned air vehicles etc.,

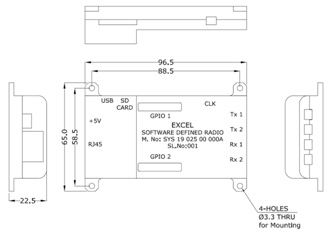

Dimensions

Size (LxWxH) : 96.5x65x22.5mm

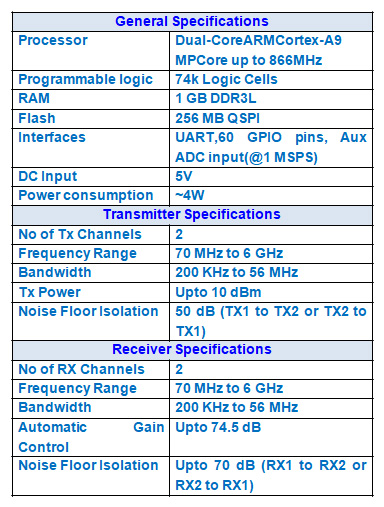

Technical Specifications

Excel Software Defined Radio

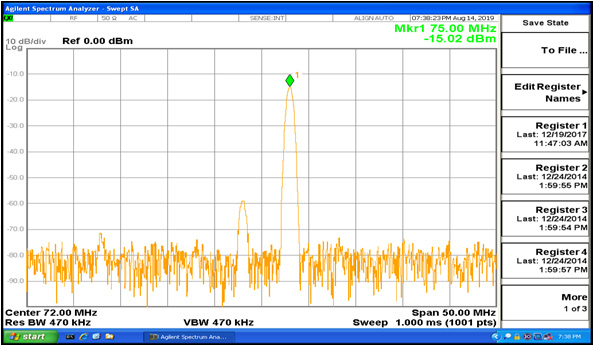

Tx Spectrum @ 72MHz

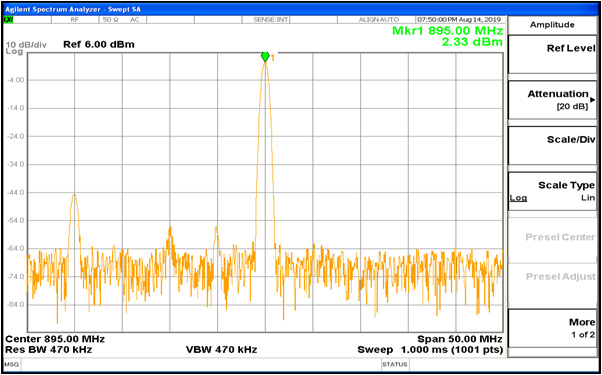

Tx Spectrum @ 895MHz

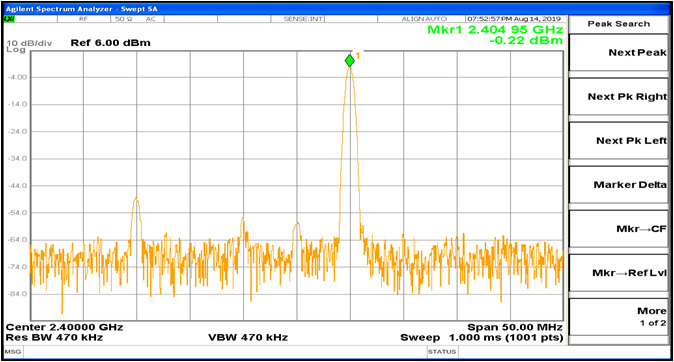

Tx Spectrum @ 2.4GHz

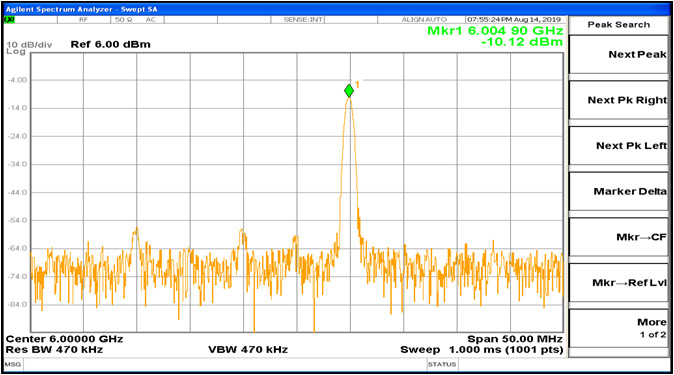

Tx Spectrum @ 6.0GHz
