Diplexer Filter (2.2 to 2.3 & 2.4 to 2.5 GHz):
| Technical Specification | |
| (Model No:DF 00 054 00 040) | |
| Transmit | |
| Frequency fc | : 2250MHz |
| -3db Band Width | :100MHz |
| Insertion Loss | : 1.5dB (Max.) |
| Return Loss | : 14dB(Min.) |
| Rejection | : 65dB @ 2100MHz 2350MHz |
| Power Handling | : 10Watt (CW) |
| Reveive | |
| Frequency fc | : 2450MHz |
| -3db Band Width | :100MHz |
| Insertion Loss | : 1.5dB (Max.) |
| Return Loss | : 14dB(Min.) |
| Rejection | : 45dB @ 2350MHz & 65dB @ 2600MHz |
| Power Handling | : < + 30dBm (CW) |
| Tx, Rx & Antenna Connectors | : SMA (F) |

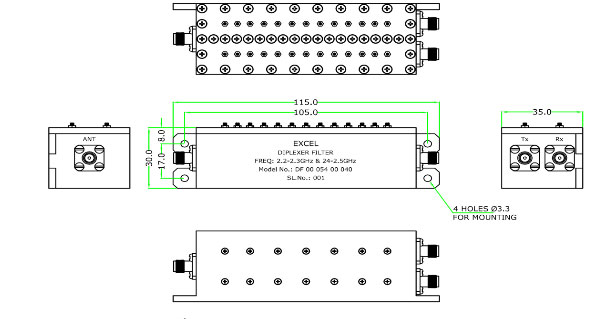

| Filter Size | : 115*35*30mm (Excluding Connectors & Tuning Screws) |
| Operating Temperature | -20∘C to +55∘C |
| Weight | : < 300gms |
